Tedgetal Server Rack Cabinets: 1U to 20U, Built for Home-Lab Gear

Home-lab builders, small offices, AV installers, and renters mapping a spare closet into a wiring point. The range covers a 1U slide-out shelf through a 20U floor rack, so a single patch-panel add-on and a full home lab both find a size. Data-center admins who need 42U enclosures with hot-swap PDU bays sit outside it.

42U covers roughly 73" of mounting height, which most home labs never fill. A router, switch, patch panel, NAS, and UPS together occupy 8U to 10U. A 42U enclosure also assumes 30" of floor depth and a dedicated circuit. Sizes between 6U and 20U cover almost every home network without paying for empty space.

The best rack is the one matching your depth and your load. Measure closet depth first, since the wall cabinets run 17.7" deep with shallower usable space and full-depth servers need 24" or more. Gear that runs hot in a basement suits an open frame. Gear near children suits a locking cabinet. Weight decides the rest, from 55 lbs on the sliding shelf to 230 lbs on the 6U open rack.

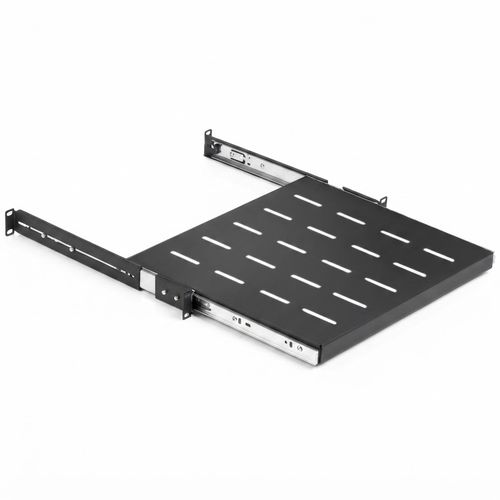

Depth adjusts from 14" to 22" on the same tray, set by where you anchor the rear posts. That range covers shallow wall cabinets and deeper floor frames without buying a second shelf. Capacity runs to 55 lbs, and the slotted vent pattern keeps air moving under whatever sits on top of it.

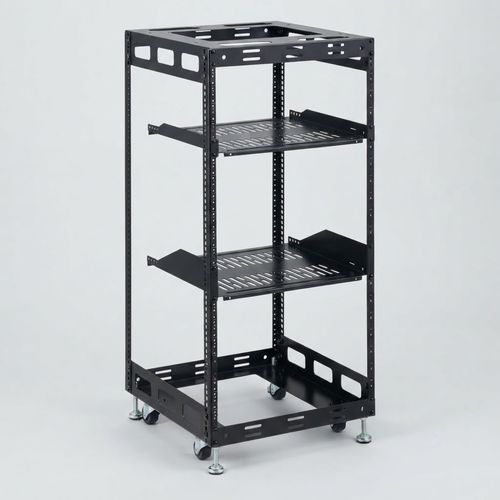

SPCC cold-rolled steel across every unit, powder coated against rust and corrosion. The 20U floor rack uses 3.0mm rails with a 1.5mm top frame and a 2.0mm bottom frame. The 10U uses 3mm rails on a one-piece frame. The wall cabinets use 1.2mm rails behind a 1.2mm door surround, and the 1U shelf is 16-gauge stock.

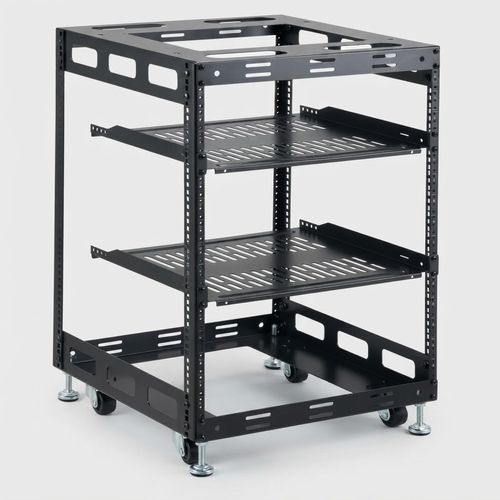

The 10U and 20U open racks each ship with four casters and four leveling feet, plus vented shelves. Wall-mount cabinets and the 6U open rack do not include them, since they hang on studs rather than stand on a floor. Casters handle repositioning. Leveling feet take the load once the rack is parked and loaded.

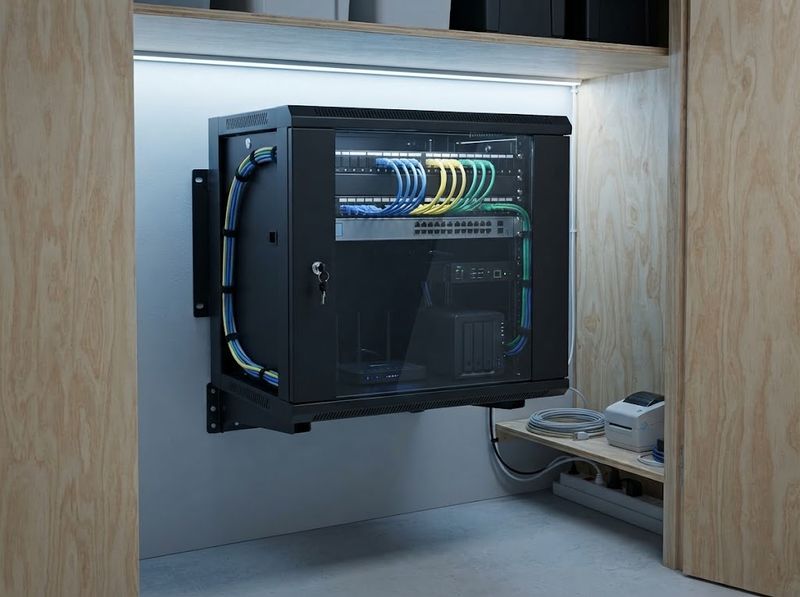

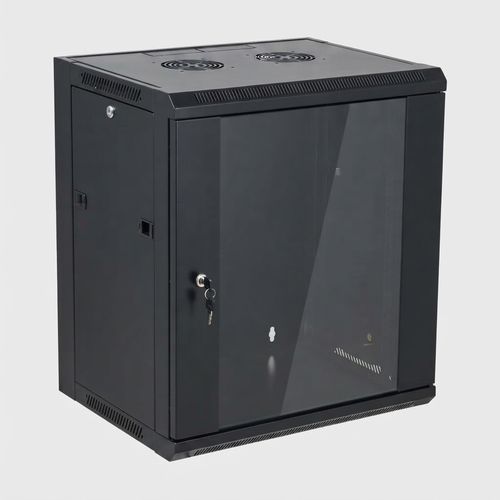

The front door is 5mm tempered glass set in a 1.2mm SPCC steel surround, not acrylic, and it locks. Tempered glass shrugs off the hallway bumps that haze and scratch acrylic within a year. Shipping damage is uncommon but possible on a heavy box, so inspect the door before assembly starts and while the return window is open.

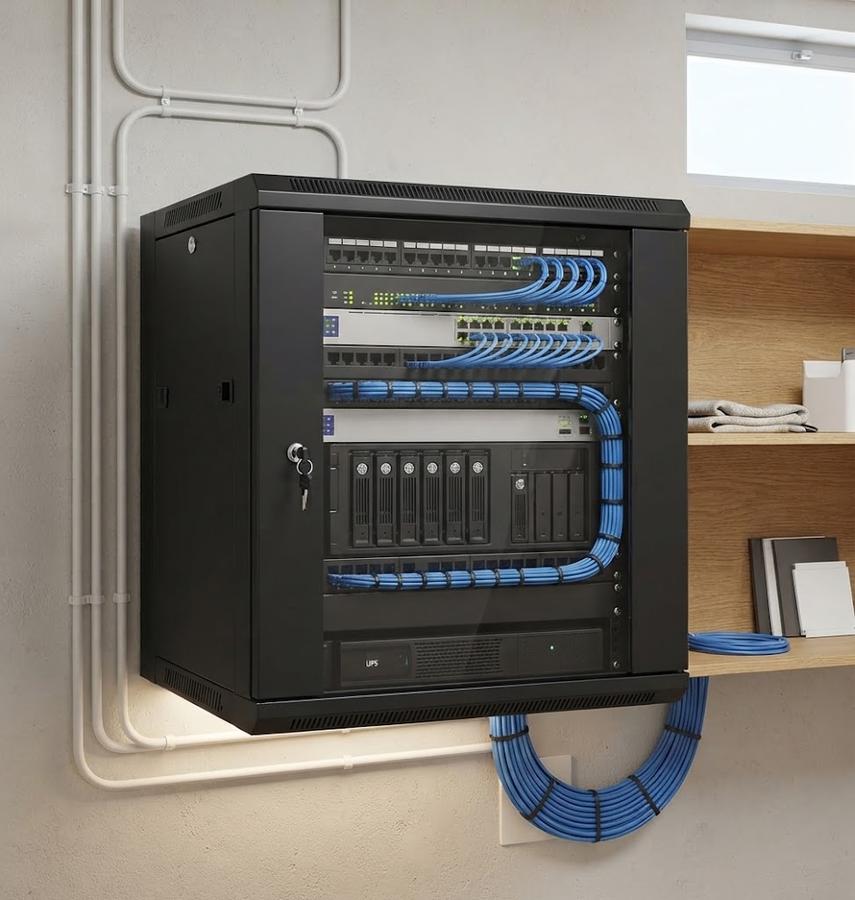

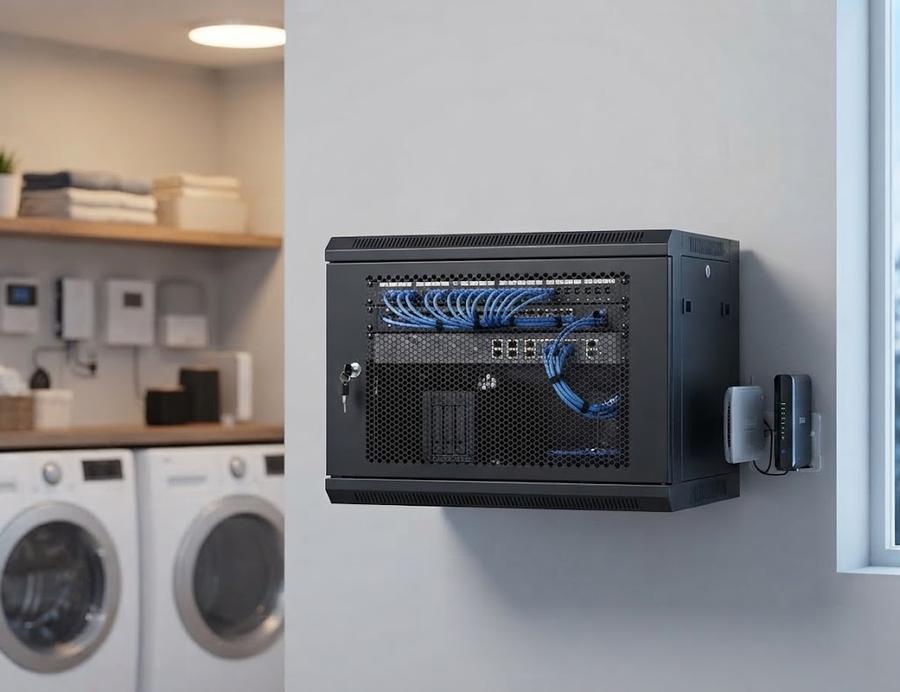

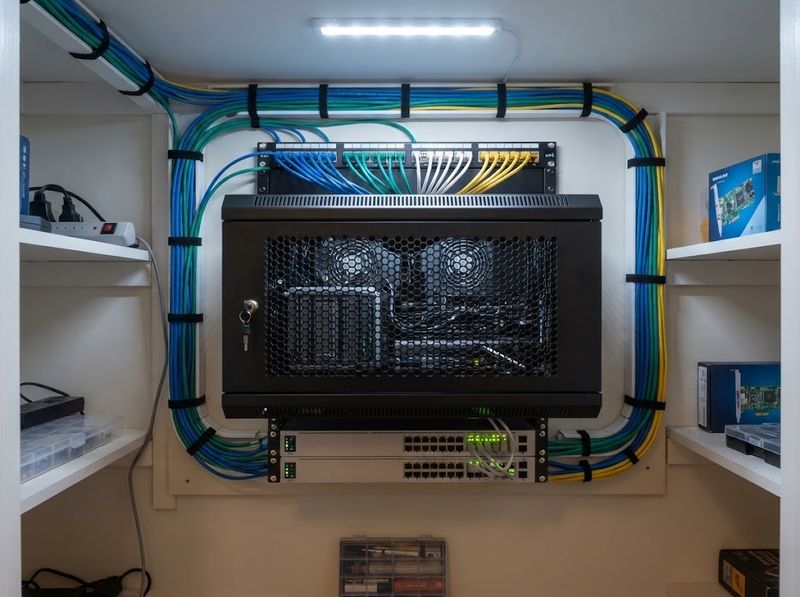

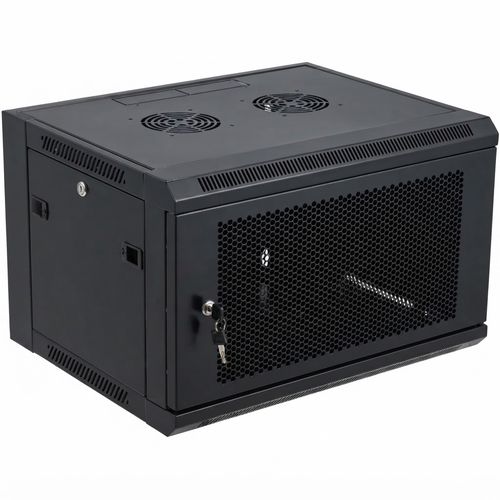

The 6U enclosed cabinet measures 22.4" wide, 17.7" deep, and 14.3" high, with 13.75" of usable depth inside. The 12U version keeps the same width and depth and stands 25" tall. Allow clearance for the door swing at the front and for cables exiting the knockouts at the rear before you mark the wall.

Both patterns appear across the range. Square-hole rails take cage nuts, the modern standard, where a stripped nut is replaceable in seconds. Threaded rails on the open frames accept 10-32 screws directly. The 20U rack bundles hardware for its round threaded holes, so using the square holes means supplying your own cage nuts.

Bundles vary by unit. The 1U shelf includes 8 M6 screws, 8 cage nuts, and 8 washers. The 20U rack includes 18 M8 sets for the rails and 46 10-32 screws with washers. The 6U open rack runs lightest, with one owner counting 11 cage nuts and screws. Order a spare box if you plan to fill every U.

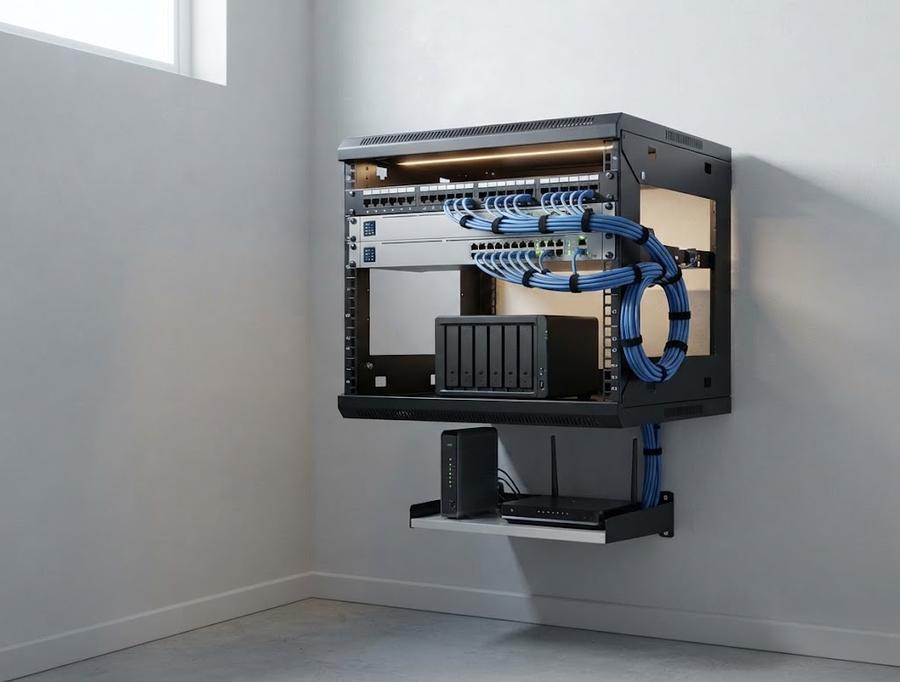

The 6U open rack and the 6U and 12U enclosed cabinets are wall-mount designs, hung on studs at 16" spacing. The 10U and 20U open frames do either: wall-mount them, or stand them on the included casters and leveling feet. The 1U sliding shelf mounts inside any of those, wall-hung or floor-standing.

Not reliably. Its own listing title states that top and bottom plates ship open or closed at random, and buyers expecting a closed top have opened the box to an open one. If a solid top matters for dust or for stacking something above it, plan on the open version arriving and check the unit within the 30-day return window.

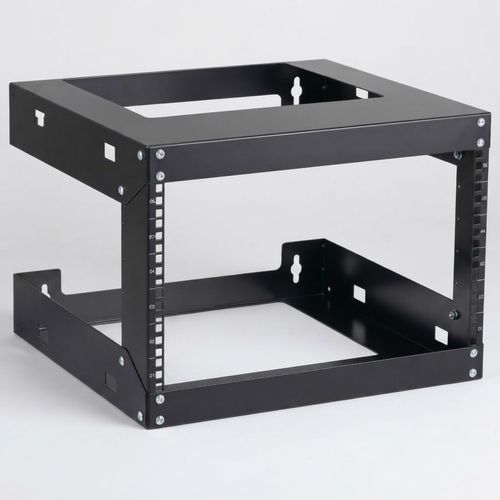

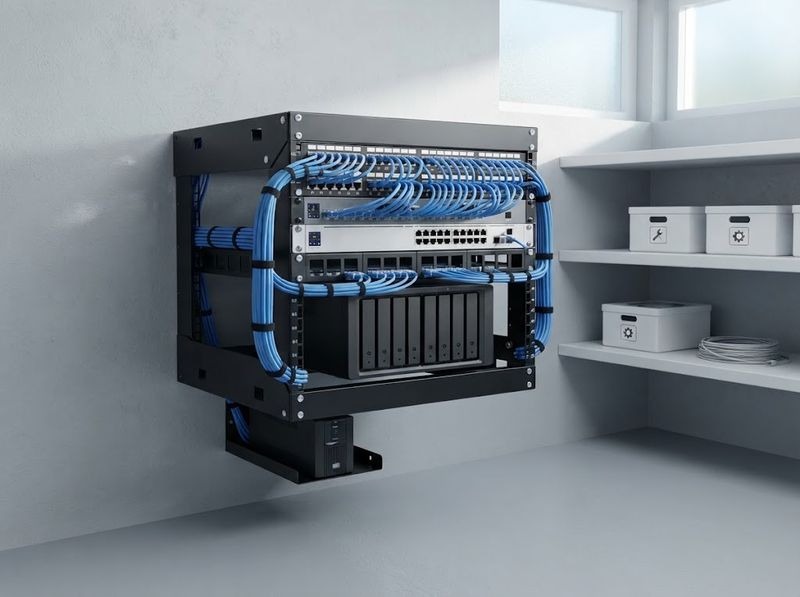

Steel gauge carries the load, not clever bracing. Owners of the 6U open rack report roughly 100 lbs mounted with no flex, and one hangs their own body weight from the frame after backing the studs with plywood. The 20U rack uses one-piece top and bottom construction to resist twisting. Shelf inserts flex before the frame does, so heavy gear belongs on rails.

Mixing brands is the normal case. The 19" mounting standard sets rail spacing and hole pattern, so a Synology NAS, a Ubiquiti switch, and a generic keystone patch panel all bolt into the same rails. Check depth rather than brand: shallow wall cabinets rule out full-depth servers regardless of who made them.

Technical support answers questions about mounting, hardware, and replacement parts after the warranty window closes. Owners report emailing about missing casters or rails and receiving replacements shipped free, in one case for units bought secondhand from another seller. Treat it as a support channel rather than an extended warranty on materials.

Photograph the box and the part, then email support with your order details. Owners report replacement rails and leveling feet sent at no charge, plus a refund for screws bought locally to fill the gap. Boxes occasionally arrive with a hole and hardware gone, so count the bags against the manual before assembly starts.

The weighted average is 4.4 stars across 954 verified reviews. The 6U wall-mount open rack leads at 4.7 across 155 reviews, the 12U glass-door cabinet holds 4.6 across 293, and the 1U sliding shelf 4.6 across 136. The 6U enclosed cabinet sits at 4.3 across 279, and the 10U open frame trails at 3.7 across 29.

The 6U enclosed cabinet sits at 4.3 and the 10U open frame at 3.7, and both scores track assembly complaints rather than build quality. Reviewers call the printed instructions sparse and the 10U's randomized top-plate configuration an unwelcome surprise. The steel itself draws consistent praise in those same reviews, including from buyers who marked the instructions down.

Support runs by email through the seller channel attached to your order, with technical help offered for the life of the product. Include the size, a photo, and the order date. Owners describe replies arriving within a day or two, including an offer to ship replacement rails at low cost for racks bought used elsewhere.

Every size sells online through its own retail listing. Pricing moves week to week, so check the current listing rather than any figure quoted elsewhere. Compare the depth and weight ceiling of the size you want against the gear you already own first, then check today's price on that size before ordering.

Coverage follows manufacturing defects, not installation choices, so removing a rack from a wall does not void it. Drilling extra holes through the frame or loading past the rated capacity does. Three years of limited coverage plus lifetime technical support apply to every unit, and the 30-day return window covers a change of mind on size.

Studs, or an equivalent backing. Mounting keyholes on the 6U open rack sit 16" on center to match standard framing. Owners with no stud in the right place have screwed 3/4" plywood across two studs first and mounted the rack to that. Drywall anchors on their own will not hold 100 lbs of gear on a wall.

Noise comes from the gear, not the steel, though a metal cabinet can resonate with a spinning NAS drive. Rubber grommets under the chassis or a shelf liner dampens that. Enclosed cabinets muffle fan noise better than open frames, which is why a living-room build usually goes enclosed and a basement build goes open.

Passive airflow carries most home-lab loads. Open frames vent on all four sides, enclosed cabinets use slotted panels and rear knockouts, and neither ships with fans. A single always-on switch and NAS rarely need active cooling. A closed cabinet holding a UPS plus a multi-drive NAS in a warm closet does, and mounting points exist for a fan kit.

Cable-management rings and horizontal managers ship with no unit here, so budget for them separately. Slim Cat6 patch cables cut bulk at the front face more than any accessory. Route power up one side and data up the other, and use the rear knockouts instead of pulling everything through the front door gap.

Power distribution ships with no unit here. A rack-mount PDU occupies 1U and bolts to the same rails, while a standard surge strip zip-ties to the rear posts. Account for that 1U when sizing, and check total draw before consolidating a whole lab onto one household circuit.

Blanking panels sell separately. They matter most in dense enclosed racks, where an empty U lets warm exhaust circle back into the intakes. In a wall cabinet holding a switch and a patch panel, the airflow gain is small and the tidier front face is the real reason people fit them.

Grounding is not specified in the product documentation, and no ground kit ships with a unit. Standard practice in home installs bonds the frame to building ground through a grounding lug or a bonded PDU, particularly where coax or outdoor Ethernet enters the house. Consult an electrician for anything beyond a switch and a router.

Open frames offer no barrier at all, so a cat walks the shelves and dust settles on every fan intake. That suits a basement or a locked utility closet. A living room with pets calls for the enclosed 6U or 12U cabinet, where a locking door and side panel keep both out while slotted vents still move air.

Those brands reach deeper into enterprise territory, with taller enclosures, integrated fan kits, and PDU bays. This range stays in the 1U to 20U home and small-office band, with SPCC cold-rolled steel on every size and 3 years of limited coverage. Cable managers and PDUs are not bundled here, which is the main gap to plan around.

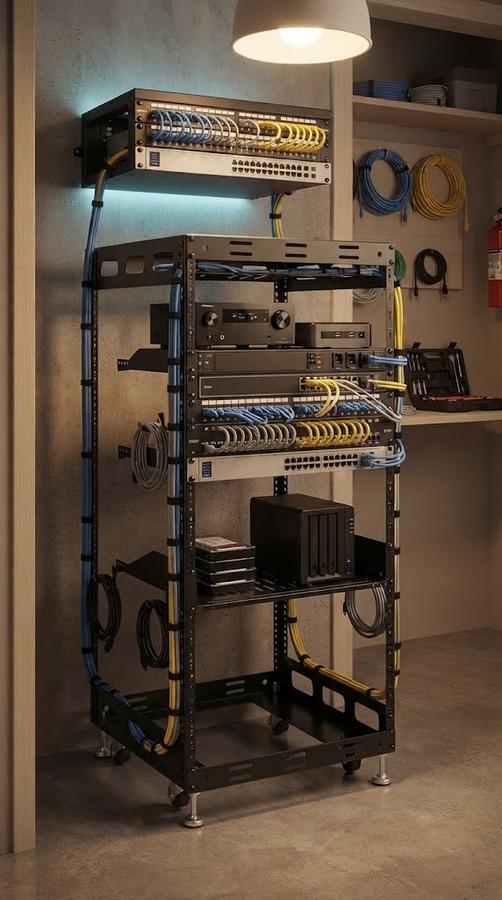

Load path, not steel quality. The 6U wall rack reaches 230 lbs because a short two-post span transfers weight straight into the studs behind it. The 20U floor rack stands 38.74" tall on casters, so its 200 lb rating accounts for the longer lever arm and a taller unsupported span. Height and capacity do not track together.

10" mini racks suit Raspberry Pi clusters and small-form-factor switches, and little else. A standard 19" switch will not fit inside one, and owners end up mounting it vertically on the outside of the frame. If your gear already carries 19" ears, a 6U wall rack costs less trouble than adapting a mini rack around it.

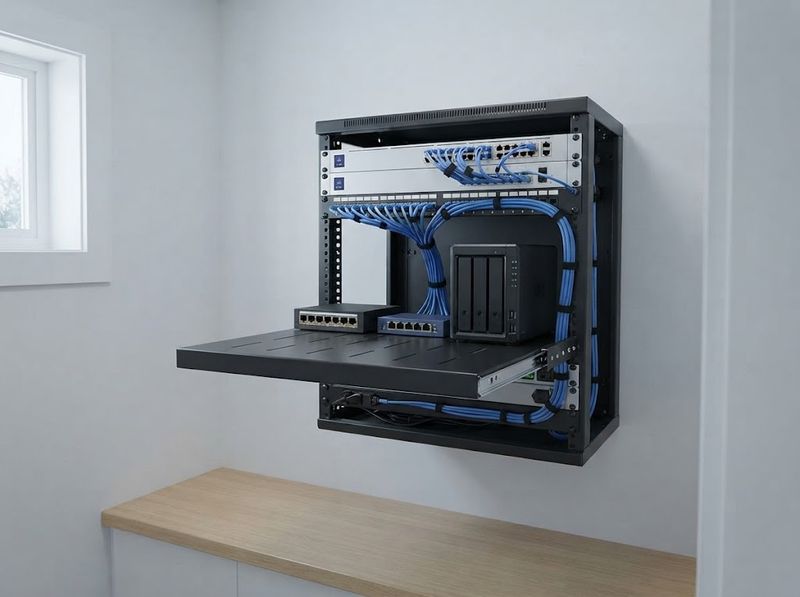

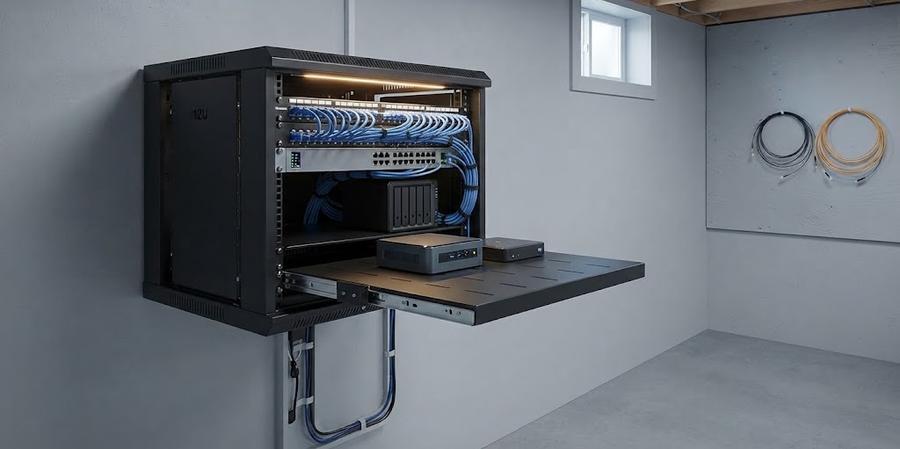

A shelf is the cheaper path. The 1U sliding shelf holds 55 lbs and pulls forward for access, which suits a mini PC, an audio mixer, or a modem. A rack-mount chassis makes sense when you build the machine yourself and want it bolted at four points. Shelves cost less and move between racks freely.

Check the width first. Some telecom cabinets use a 24" mounting standard rather than 19", which means every piece of standard gear needs an adapter kit that often fouls the door. A used enclosure also arrives without warranty coverage or replacement rails. Matching the 19" standard from the start avoids both problems.

Instructions are the weakest part of the range. The 6U enclosed cabinet ships a single sheet that owners call cryptic, some 10U units arrive with no printed manual, and the assembly video fills the gaps better than the paper does. Read the whole sequence before starting, because side frames go on before the rails.

Cage nuts size to the hole rather than the brand, so an M6 cage nut fits any standard square-hole rack. Match the screw thread to the nut, not to the rack. Threaded rails skip nuts entirely and take 10-32 screws directly, which is exactly what the 20U rack bundles in its hardware bag.

Mounting standards carry over intact. A switch and patch panel bolted into a 6U wall rack unbolt and move into a 20U floor rack on the same rail spacing and the same cage nuts. Depth is the only variable worth rechecking: a device that fits a 17.7" cabinet has room to spare in a 20" open frame.

Wipe the powder coat with a dry cloth, since solvents dull the finish. Vacuum dust off fan intakes every few months, more often on an open frame sitting near a floor. Recheck leveling feet and caster locks once a year on a rolling rack, and retighten rail screws after the first month under load.
